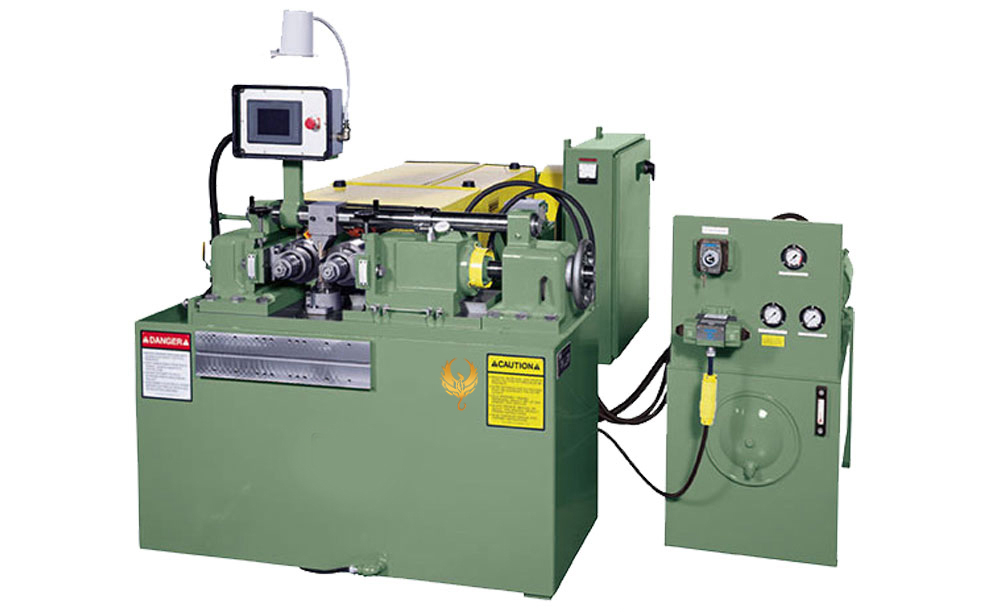

Hydraulic Thread Rolling Machiness
Phoenix Tools has been a intergral part of the indian threading tool industry of a decade. Established in 1987 to Manufacturer Portable Threading Machine, Hydraulic Hydraulic Thread Rolling Machines & thread rolls, lanco type die head, tangential chasers, tap, milling, cutters, tool bits, pipe and pipe sockets. Phoenix Tools has thus truly for itself the name of Phoenix Tools. All our products are Manufacturerd with the utmost precision from high quality steel imported from Japan and west Europe. Our product range includes die head, head treated die head, bolt and Portable Threading Machines, end facing machines, chaser Grinder Machine. Phoenix Tools has always endeavored to acquire a close insight into the requirement of its customers. Our quality assrance cell and R & D wing are always at their foot to serve swiftly while making product development a continuous process. Phoenix Tools never hesitates to do that extra mile to make sure that its products line upto their promises. Growing from strength the Phoenix Toolsimage has reached the zenith of status backed by dynamic and dedicated team of skilled employees and expert engineers, Phoenix Tools is using the advanced international techniques working on its motto of "Quality by choice not by chance"
Specifications
| Max. Pitch can be Rolled | 2.5 | 3 | 3.5 | 4 | 5 |
|---|---|---|---|---|---|
| Max. Dia can be Rolled infeed | 25 | 25 | 40 | 50 | 50 |
| Through Feed | 12 | 16 | 25 | 30 | 36 |
| Max. Rolling Length Infeed | 80 | 80 | 125 | 150 | 180 |
| Through Feed | indefinite | indefinite | indefinite | indefinite | indefinite |
| Max. Outer Dia. T Rolls | 120 | 160 | 180 | 200 | 200 |
| Spindle Dia (Bore Dia) | 40 | 54 | 54 | 69.85 | 69.85 |
| Max. Width T. Rolls | 80 | 80 | 125 | 150 | 180 |
| Maximum Rolling Force | 8 Tons | 8 Tons | 12 Tons | 15 Tons | 24 Tons |
| For Roll Spindles | 3 Hp 1440 RPM | 3 Hp 1440 RPM | 5 Hp 1440 RPM | 7.5 Hp 1440 RPM | 10 Hp 1440 RPM |
| For Hyd. Pump | 2 Hp 1440 RPM | 3 Hp 1440 RPM | 3 Hp 1440 RPM | 5 Hp 1440 RPM | 5 Hp 1440 RPM |
| For Coolant Pump | 0.25 Hp 3000 RPM | 0.25 Hp 3000 RPM | 0.25 Hp 3000 RPM | 0.25 Hp 3000 RPM | 0.25 Hp 3000 RPM |

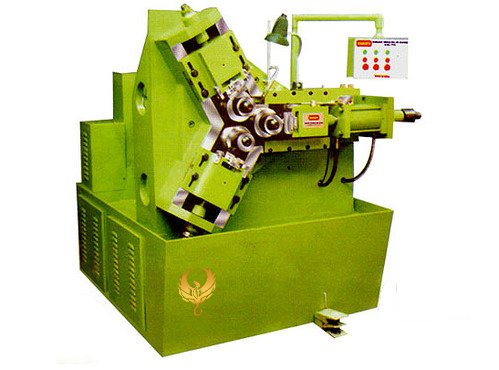

Tube Rolling Machine
Merits
- High Efficiency & Accurate cenricity.
- Solid structure, durable & wide range of application.
- Suitable for mass-production & high working efficiency.
Usage
- Suitable for tube's adaptor & thread rolling.
- Suitable for pattern & gear rolling.
- Suitable for arts tube, classic ceiling fan, bike's hub & various adaptors.
