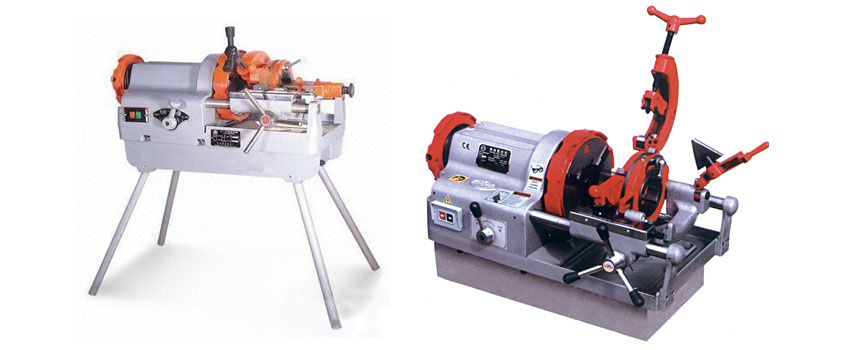

Portable Threading Machine
| Model | Z1T-R2B, Z3T-R2B | Z1T-R3 II, Z3T-R3 II | Z1T-R41II, Z3T-R4111 | Z1T-R4, Z3T-R4 | Z1T-R6, Z3T-R6 | Z1T-R2A , Z3T-R2A |
|---|---|---|---|---|---|---|
| Capacity | 1/2" - 2" | 1/2" - 3" | 1/2"- 4" | 1/2"- 4" | 2 1/2"- 6" | 1/2" - 2", M12-M33 |
| Dies | 1/2" - 3/4", 1" - 2" | 1/2" - 3/4", 1" - 2", 21/2" - 3" | 1/2"- 3/4",1"- 2", 21/2"-4 | 1/2" - 3/4", 1"- 2", 2 1/2"- 4" | 21/2"- 4", 5"- 6" | 1/2" - 3/4", 1" - 2" M12,M14-M16,M18-M22,M24-M27,M30-M33 |
| Power Supply | 220V- , 380V- | 220V- , 380V- | 220V- , 380V- | 220V- , 380V- | 220V- , 380V- | 220V- , 380V- |
| Motor Power(W) | 750 | 750 | 750 | 750 | 1100 | 900 |
| Speed(RPM) | 28 | 19/27 | 19/27 | 8.5/24 | 5/17.5 | 28 |
| Gross/Net Weight(Kg) | 86/70 | 150/110 | 165/140 | 220/170 | 250/200 | 92/75 |
| Packing Size (mm) | 720x490x560 | 950x590x560 | 1000x650x640 | 1050x700x690 | 1100x770x690 | 720x490x560 |
